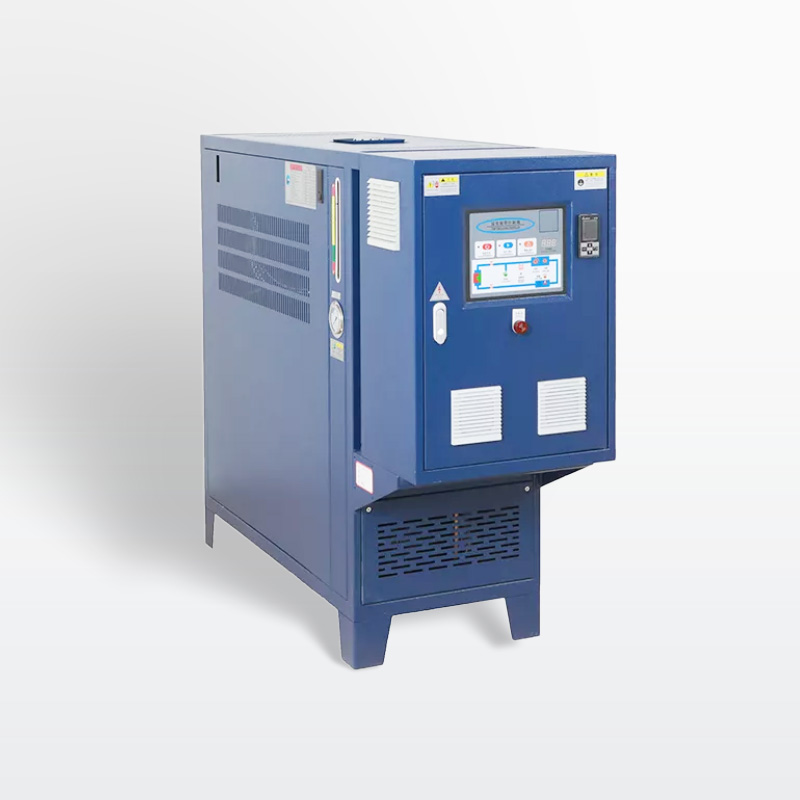

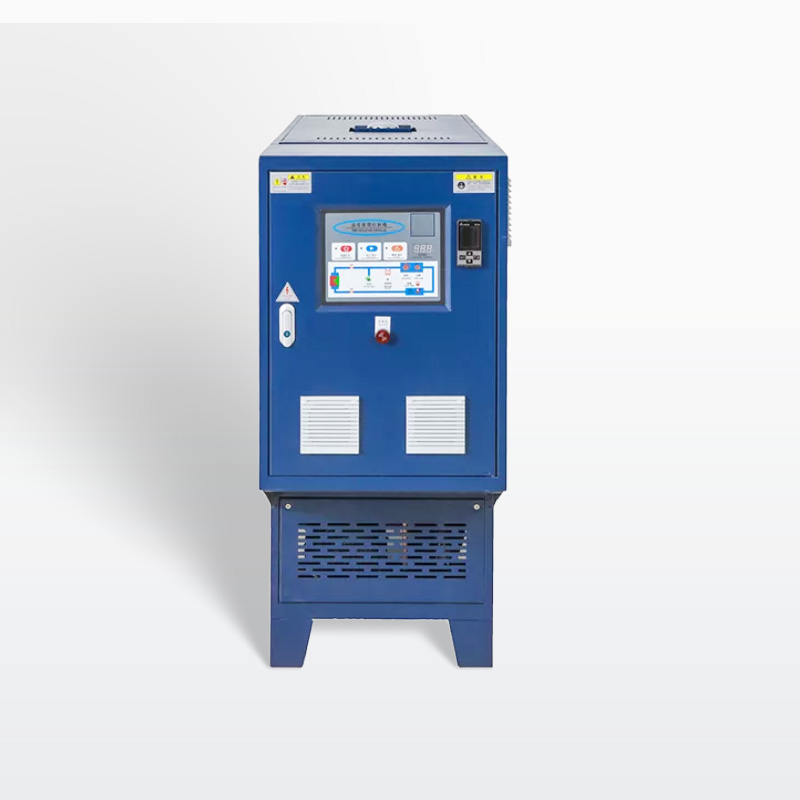

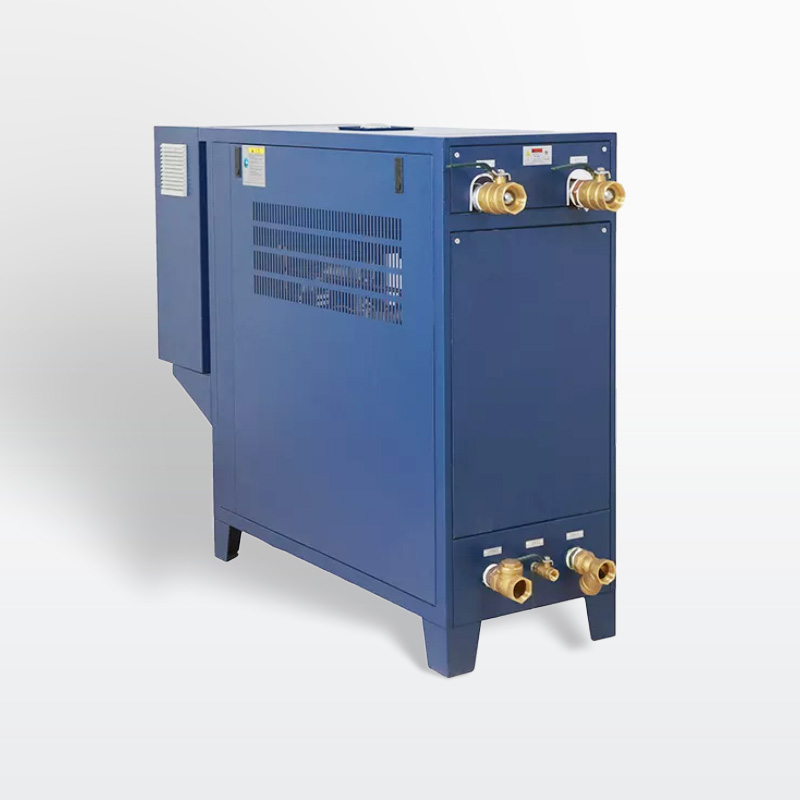

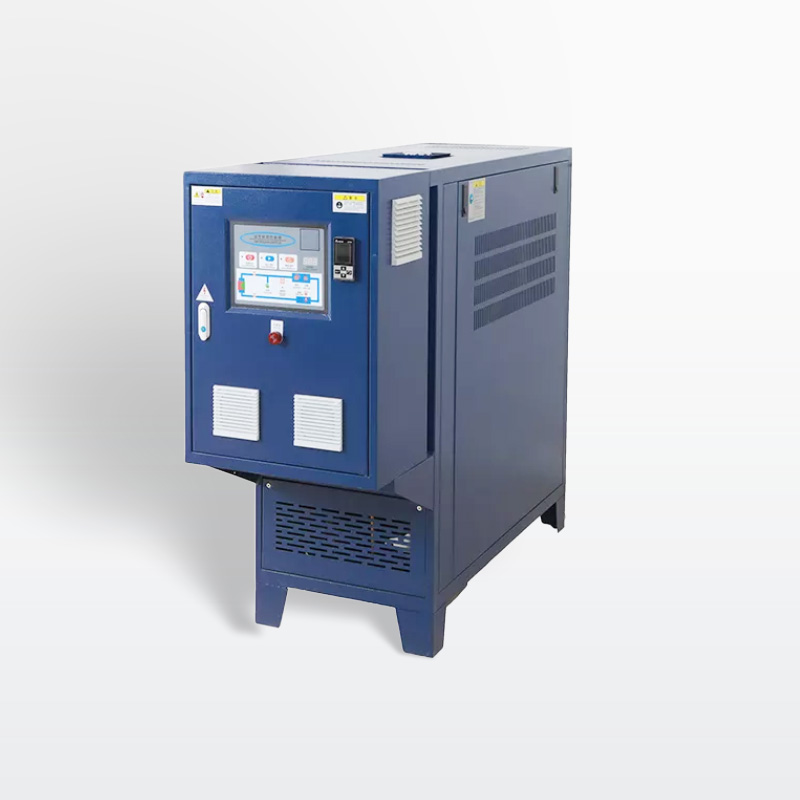

Mold Temperature Controller

Model: TWH
Power Supply: 380V 3Ph 50Hz (Customizable)
Thermal Fluids:  Water
Workong Temperature: RT+30°C to 120°C
Control Accuracy: ± 1°C
Heating:  Electric heating
Heating Control: SSR or SCR power controllers
Temperature Control: Meter or PLC control
Color: Customizable

Product Description

Mold Temperature Controller is designed for process temperature control up to 120℃, which is custom designed for each application, using water as heat-transfer medium. TWH series is the most compact temperature control system. The system include an electric heater, centrifugal pump, control panel, strainer, stop valves, platinum resistance thermometer sensor, pressure gauge with electric contact, alumina silicate fibre insulation and connecting piping mounted in a welded steel frame.

Normally a pump transports the hot water into the heater, which is then heated. The hot water will then flow out of the heater at a fixed flow rate decided. The heat generated is evenly distributed and the efficiency of the heater is high. Temperature sensors can be used with control to achieve the desired temperature range.

► APPLICATIONS

  • Reactor,  Distillation still, etc.
  • Evaporator
  • Heat Press
  • Roller
  • Mold
  • Exchanger
  • Oven
  • Dryer
  • Tank (Asphalt tank, Grease tank, etc.)

► FEATURES

  • All welded construction
  • Thermal insulation provided to prevent heat loss
  • Low pressure and high temperature
  • Isolation gate valves and strainer
  • Terminal enclosures available for easy wiring
  • Functional test of system prior to shipment
  • Highly customizable to meet specifications

► CONTROL

  • Digital PID temperature controller
  • SSR or SCR power controllers
  • Brand electrical components (Siemens, Omron, Schneider Electric, ABB, etc.)
  • Heat ON/OFF switch
  • Audible and visible alarm indicators
  • Control Accuracy: ±1°C
  • 3∼3000KW input power supply to your specifications
  • Temperature recorder (optional)
  • PLC with HMI(touch panel) (optional)
  • RS485 communication protocols (optional)
  • Programmable temperature controllers (optional)

► SAFETY PROTECTION

  • Over Temperature Alarm, Automatic Interlock Protection
  • Pressure Detection: pressure gauge with electric contact which show real pressure of entire system was equipped on the piping. Control system will alarm immediately when pressure below a certain value, meanwhile the Heater stop too.

► SPECIFICATIONS

Model Heating Capacity Pump Capacity Pump Flow Pump Head Inlet/Outlet Size Overall Dimensions
TWH3-0.75 3KW 0.75KW 1.5m³/h 22m DN20/DN20 L1800×W600×H1400 mm
TWH6-0.75 6KW 0.75KW 1.5m³/h 22m DN20/DN20 L1800×W600×H1400 mm
TWH12-1.5 12KW 1.5KW 6m³/h 28m DN25/DN25 L2000×W600×H1400 mm
TWH24-2.2 24KW 2.2KW 10m³/h 28m DN32/DN32 L2000×W600×H1400 mm
TWH36-3 36KW 3KW 12.5m³/h 30m DN50/DN50 L2000×W650×H1450 mm
TWH48-4 48KW 4KW 16m³/h 32m DN50/DN50 L2100×W650×H1450 mm
TWH60-5.5 60KW 5.5KW 18m³/h 40m DN50/DN50 L2300×W650×H1450 mm
TWH72-5.5 72KW 5.5KW 18m³/h 40m DN50/DN50 L2300×W750×H1750 mm
TWH90-5.5 90KW 5.5KW 18m³/h 40m DN50/DN50 L2300×W750×H1750 mm
TWH120-7.5 120KW 7.5KW 30m³/h  48m DN65/DN65 L2300×W750×H1750 mm
TWH150-7.5 150KW 7.5KW 30m³/h 48m DN65/DN65  L2400×W750×H1750 mm
TWH200-11 200KW 11KW 45m³/h 40m DN80/DN80 L2400×W1000×H1950 mm
TWH250-11 250KW 11KW 45m³/h 40m DN80/DN80 L2400×W1000×H1950 mm

Notes: For more models, please contact us. The unit could be entirely bespoke, we can design and tailor heating capacity, pump, etc. to your specification.
