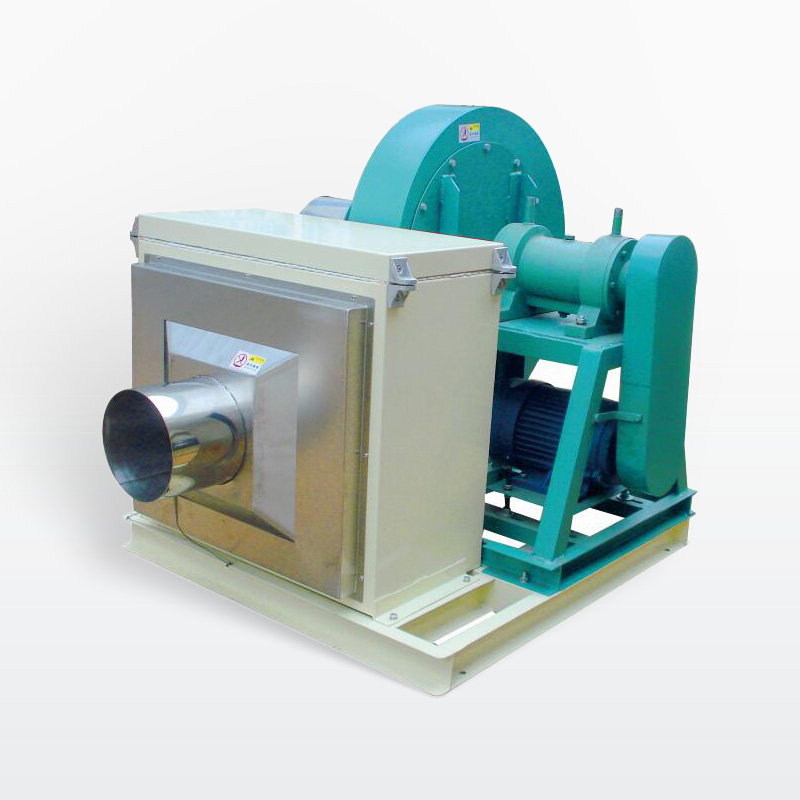

Closed-loop Hot Air Heater With Blower

Product Description

Hot Air Blower is designed for process temperature control up to 350℃, Industrial Heat Blowers are custom designed for non-pressurized air-heating systems.

Industrial hot air blowers are an assembly of heating coils mounted in duct. With a blower installed at a port of the duct, which blows the air into the heater,and then being heated until the desired temperature is reached. The air will then flow out of the heater at a fixed flow rate. The heat generated is evenly distributed and the efficiency of the heater is high. Temperature sensors can be used with any control to achieve the desired temperature range. Industrial Heat Blowers can be used in hot air circulating system and noncirculating system.

► APPLICATIONS

Electronics parts drying
Harware drying
Oven heating & drying
Vessel drying

► HEATING ELEMENT

Open Coil Heating Element

► FEATURES

All in one structure
Quite easy to mount
Terminal enclosures available for easy wiring
Functional test of system prior to shipment
Highly customizable to meet specifications

► CONTROL

Digital temperature controller with PID control
SSR or SCR power controllers
Heat ON/OFF switch
Audible and visible alarm indicators
Control Accuracy: ±1°C
5∼100KW input power supply to your specifications
Temperature recorder (optional)
PLC with HMI(touch panel) (optional)
Programmable temperature controllers (optional)

► SAFETY PROTECTION

Over Temperature Alarm, Automatic Interlock Protection

► SPECIFICATIONS

Note:
1.We can custom make heaters in heating powers and blowers that are customized to your specifications
2.Manual adjustable air inlet valve
3.The higher the required temperature, the smaller the air flow adjust
4.Power supply upon request
