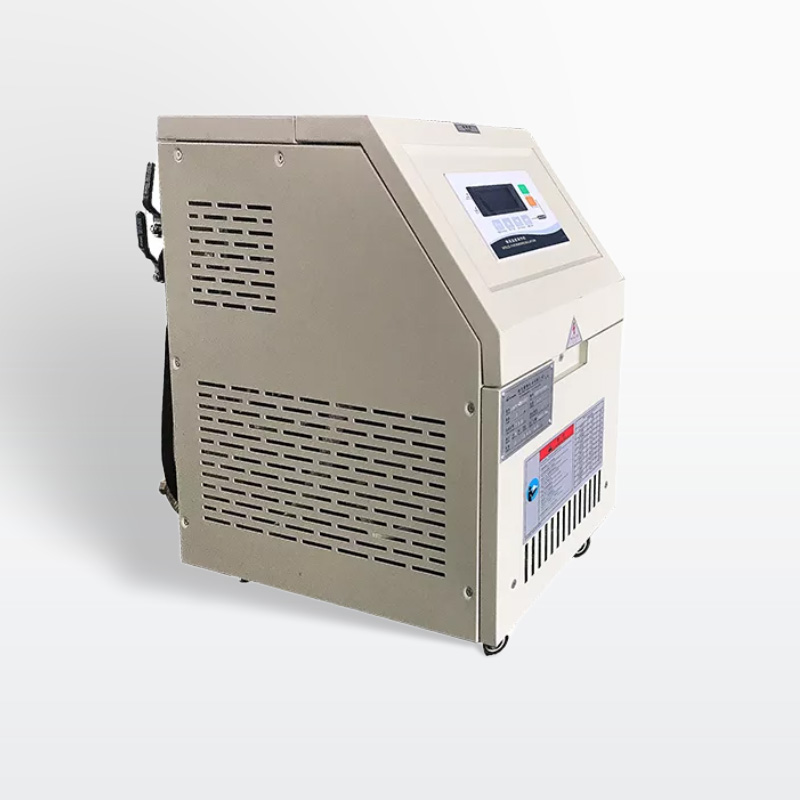

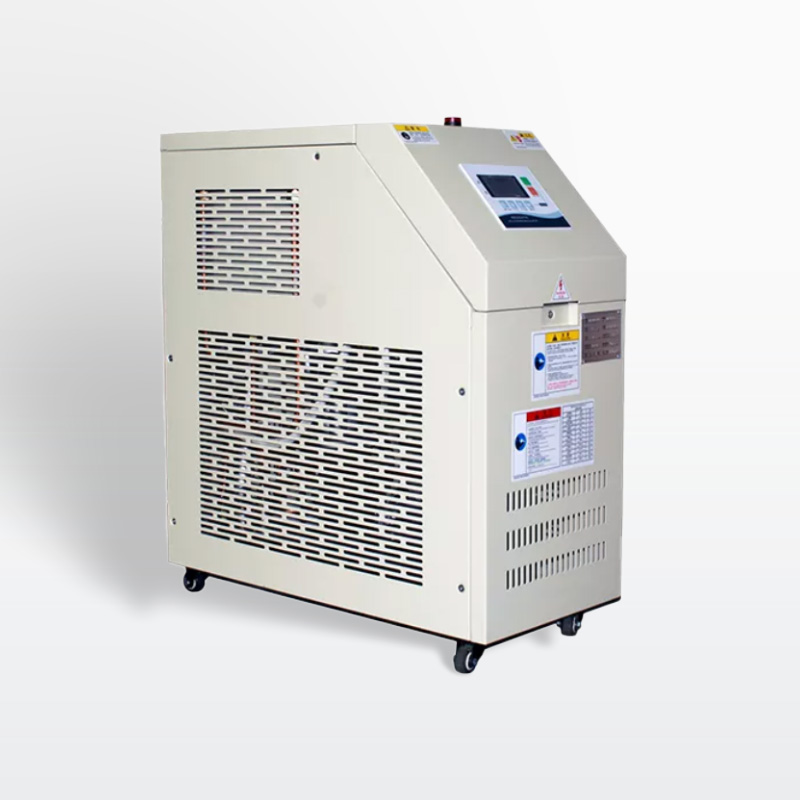

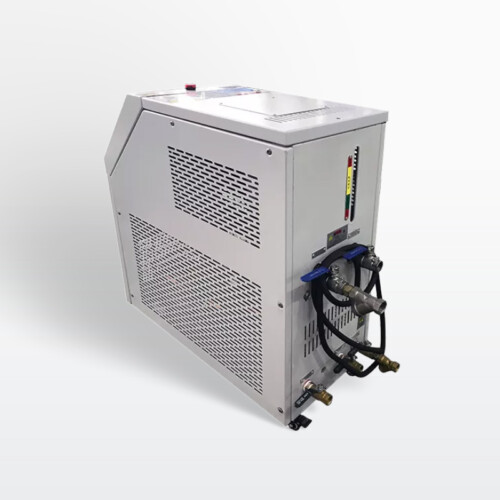

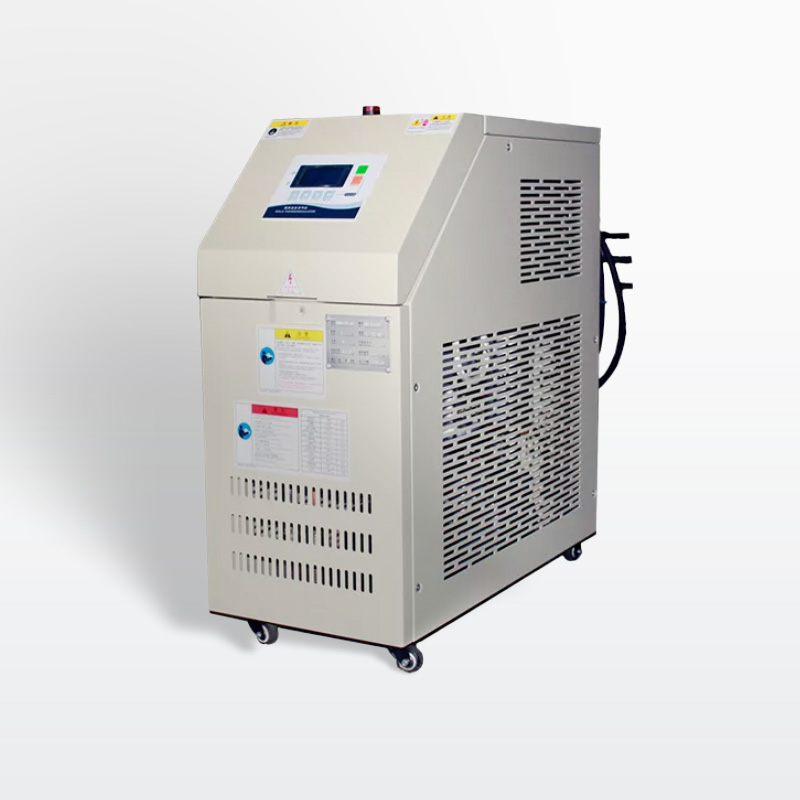

Hot Water Heater

Product Description

Hot water heater is designed for process temperature control up to 120℃, which is custom designed for each application, using water as heat-transfer medium. TWH series is the most compact temperature control system. The system include an electric heater, centrifugal pump, control panel, strainer, stop valves, platinum resistance thermometer sensor, pressure gauge with electric contact, alumina silicate fibre insulation and connecting piping mounted in a welded steel frame.

Normally a pump transports the hot water into the heater, which is then heated. The hot water will then flow out of the heater at a fixed flow rate decided. The heat generated is evenly distributed and the efficiency of the heater is high. Temperature sensors can be used with control to achieve the desired temperature range.

► APPLICATIONS

Reactor, Distillation still, etc.
Evaporator
Heat Press
Roller
Mold
Exchanger
Oven
Dryer
Tank (Asphalt tank, Grease tank, etc.)

► FEATURES

All welded construction
Thermal insulation provided to prevent heat loss
Low pressure and high temperature
Isolation gate valves and strainer
Terminal enclosures available for easy wiring
Functional test of system prior to shipment
Highly customizable to meet specifications

► CONTROL

Digital PID temperature controller
SSR or SCR power controllers
Brand electrical components (Siemens, Omron, Schneider Electric, ABB, etc.)
Heat ON/OFF switch
Audible and visible alarm indicators
Control Accuracy: ±1°C
3∼3000KW input power supply to your specifications
Temperature recorder (optional)
PLC with HMI(touch panel) (optional)
RS485 communication protocols (optional)
Programmable temperature controllers (optional)

► SAFETY PROTECTION

Over Temperature Alarm, Automatic Interlock Protection
Pressure Detection: pressure gauge with electric contact which show real pressure of entire system was equipped on the piping. Control system will alarm immediately when pressure below a certain value, meanwhile the Heater stop too.

► SPECIFICATIONS

Model	Heating Capacity	Pump Capacity	Pump Flow	Pump Head	Inlet/Outlet Size	Overall Dimensions
TWH3-0.75	3KW	0.75KW	1.5m³/h	22m	DN20/DN20	L1800×W600×H1400 mm
TWH6-0.75	6KW	0.75KW	1.5m³/h	22m	DN20/DN20	L1800×W600×H1400 mm
TWH12-1.5	12KW	1.5KW	6m³/h	28m	DN25/DN25	L2000×W600×H1400 mm
TWH24-2.2	24KW	2.2KW	10m³/h	28m	DN32/DN32	L2000×W600×H1400 mm
TWH36-3	36KW	3KW	12.5m³/h	30m	DN50/DN50	L2000×W650×H1450 mm
TWH48-4	48KW	4KW	16m³/h	32m	DN50/DN50	L2100×W650×H1450 mm
TWH60-5.5	60KW	5.5KW	18m³/h	40m	DN50/DN50	L2300×W650×H1450 mm
TWH72-5.5	72KW	5.5KW	18m³/h	40m	DN50/DN50	L2300×W750×H1750 mm
TWH90-5.5	90KW	5.5KW	18m³/h	40m	DN50/DN50	L2300×W750×H1750 mm
TWH120-7.5	120KW	7.5KW	30m³/h	48m	DN65/DN65	L2300×W750×H1750 mm
TWH150-7.5	150KW	7.5KW	30m³/h	48m	DN65/DN65	L2400×W750×H1750 mm
TWH200-11	200KW	11KW	45m³/h	40m	DN80/DN80	L2400×W1000×H1950 mm
TWH250-11	250KW	11KW	45m³/h	40m	DN80/DN80	L2400×W1000×H1950 mm
…	…	…	…	…	…	…

Notes: For more models, please contact us. The unit could be entirely bespoke, we can design and tailor heating capacity, pump, etc. to your specification.
