Product Description

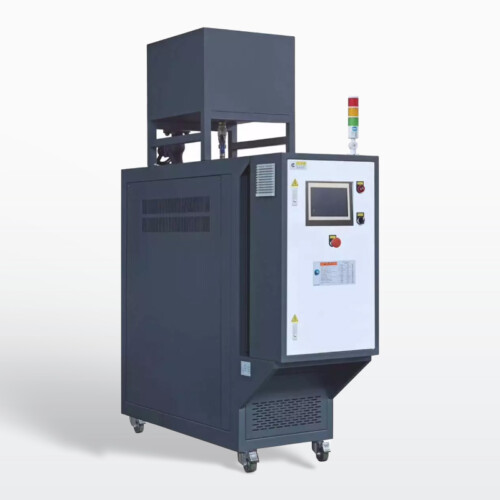

Glycol Heater is designed for process temperature control up to 180℃, which is custom designed for each application, using glycol as heating medium. TGH series is the most compact temperature control system. The system include an electric heater, centrifugal pump, expansion tank, control panel, strainer, stop valves, platinum resistance thermometer sensor, pressure gauge with electric contact, alumina silicate fibre insulation and connecting piping mounted in a welded steel frame.

Normally a pump transports the glycol into the heater, which is then heated. The glycol will then flow out of the heater at a fixed flow rate decided. The heat generated is evenly distributed and the efficiency of the heater is high. Temperature sensors can be used with control to achieve the desired temperature range.

► APPLICATIONS

• Reactor,  Distillation still, etc.
• Evaporator
• Heat Press
• Roller
• Mold
• Exchanger
• Oven
• Dryer
• Tank (Asphalt tank, Grease tank, etc.)

► FEATURES

• All welded construction
• Thermal insulation provided to prevent heat loss
• Low pressure and high temperature
• Isolation gate valves and strainer
• Terminal enclosures available for easy wiring
• Functional test of system prior to shipment
• Highly customizable to meet specifications

► CONTROL

• Digital PID temperature controller
• SSR or SCR power controllers
• Brand electrical components (Siemens, Omron, Schneider Electric, ABB, etc.)
• Heat ON/OFF switch
• Audible and visible alarm indicators
• Control Accuracy: ±1°C
• 3∼3000KW input power supply to your specifications
• Temperature recorder (optional)
• PLC with HMI(touch panel) (optional)
• RS485 communication protocols (optional)
• Programmable temperature controllers (optional)

► SAFETY PROTECTION

• Over Temperature Alarm, Automatic Interlock Protection
• Pressure Detection: pressure gauge with electric contact which show real pressure of entire system was equipped on the piping. Control system will alarm immediately when pressure below a certain value, meanwhile the Heater stop too.
• Low Level Detection: Expansion tank is equipment with a ball float level controller, Control system will alarm immediately when pressure below a certain value, meanwhile the Heater stop too.

► SPECIFICATIONS

Notes: For more models, please contact us. The unit could be entirely bespoke, we can design and tailor heating capacity, pump, etc. to your specification.

► SCHEMATIC DIAGRAM
