Electric Nitrogen Heater

Product Description

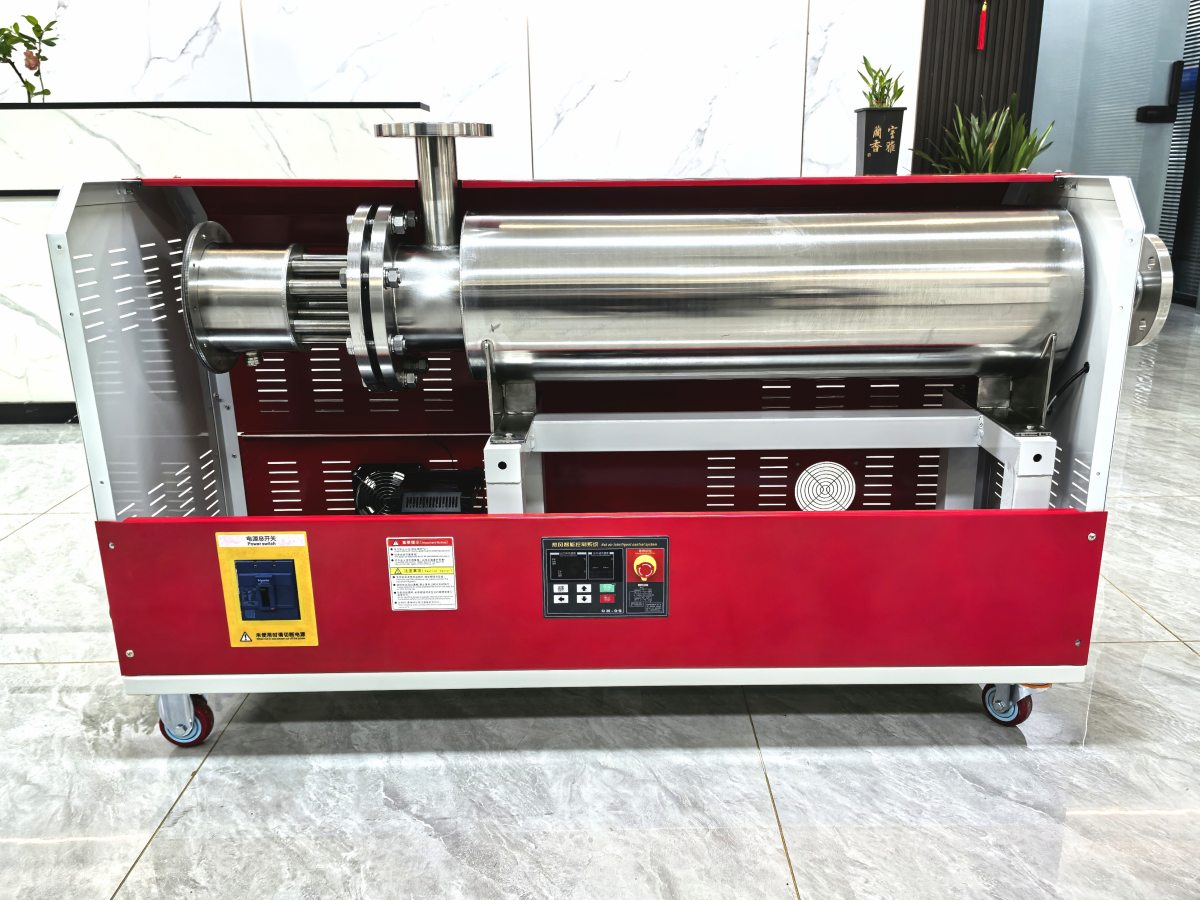

Compressed Air Heater is designed for process temperature control up to 600℃, Nitrogen Heaters are custom designed for heating nitrogen. Nitrogen Heater is the most compact temperature control system. Nitrogen Heater include an electric heater, control center, platinum resistance thermometer sensor, alumina silicate fibre insulation.

Normally a pressure vessel ejects the nitrogen into the heater, which is then heated until the desired temperature is reached. The nitrogen will then flow out of the heater at a fixed flow rate. The heat generated is evenly distributed and the efficiency of the heater is high. Temperature sensors can be used with any control to achieve the desired temperature range.

► APPLICATIONS

Nitrogen Heating

► FEATURES

All welded construction
Thermal insulation provided to prevent heat loss
Mounting lugs provided
Terminal enclosures available for easy wiring
Functional test of system prior to shipment
Highly customizable to meet specifications

► CONTROL

Digital temperature controller
SSR or SCR power controllers
Heat ON/OFF switch
Audible and visible alarm indicators
Control Accuracy: ±1°C
3∼3000KW input power supply to your specifications
Temperature recorder (optional)
PLC with HMI(touch panel) (optional)
Programmable temperature controllers (optional)

► SAFETY PROTECTION

Over Temperature Alarm, Automatic Interlock Protection
Separate heating elements overtemp interlock protection

► SPECIFICATIONS

Model	Heating Capacity	Heating Zone	Inlet/Outlet Size	Overall Dimensions
EHP5	5KW	Φ133×1000 mm	As requested	1400×450×800 mm
EHP10	10KW	Φ159×1000 mm	As requested	1400×450×800 mm

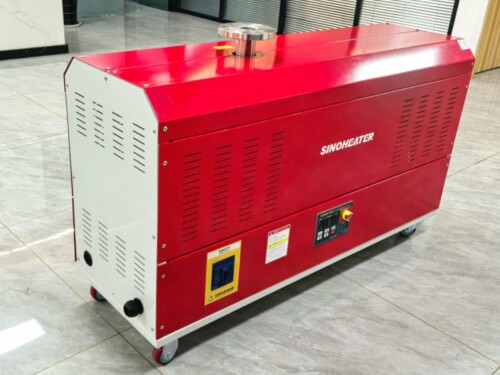

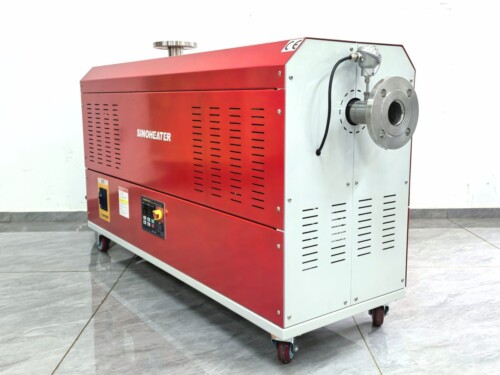

EHP20	20KW	Φ219×1500 mm	As requested	1900×550×950 mm
EHP40	40KW	Φ219×1700 mm	As requested	2100×550×950 mm
EHP60	60KW	Φ273×2000 mm	As requested	2400×600×1050 mm
EHP80	80KW	Φ273×2200 mm	As requested	2600×600×1050 mm
EHP100	100KW	Φ273×2500 mm	As requested	2900×600×1050 mm
EHP120	120KW	Φ273×2500 mm	As requested	2900×600×1050 mm
EHP150	150KW	Φ273×2800 mm	As requested	3200×600×1050 mm
EHP180	180KW	Φ325×2700 mm	As requested	3200×700×1150 mm
EHP200	200KW	Φ325×2700 mm	As requested	3200×700×1150 mm
EHP250	250KW	Φ377×2700 mm	As requested	3200×750×1200 mm
EHP300	300KW	Φ426×3000 mm	As requested	3500×800×1300 mm
…	…	…	…	…

Notes: For more models, please contact us. The unit could be entirely bespoke, we can design and tailor heating capacity, etc. to your specification.
