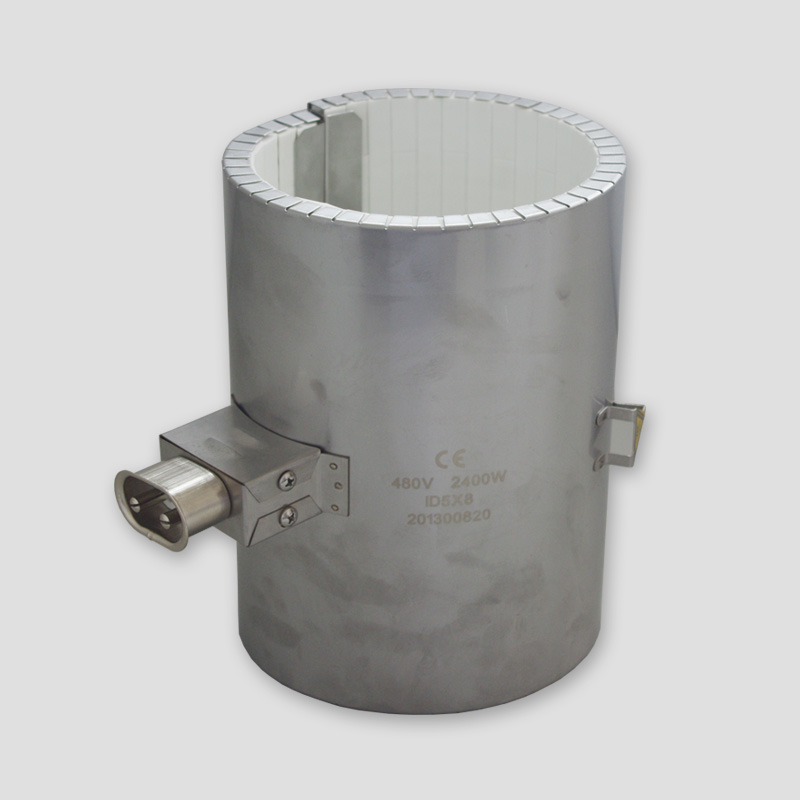

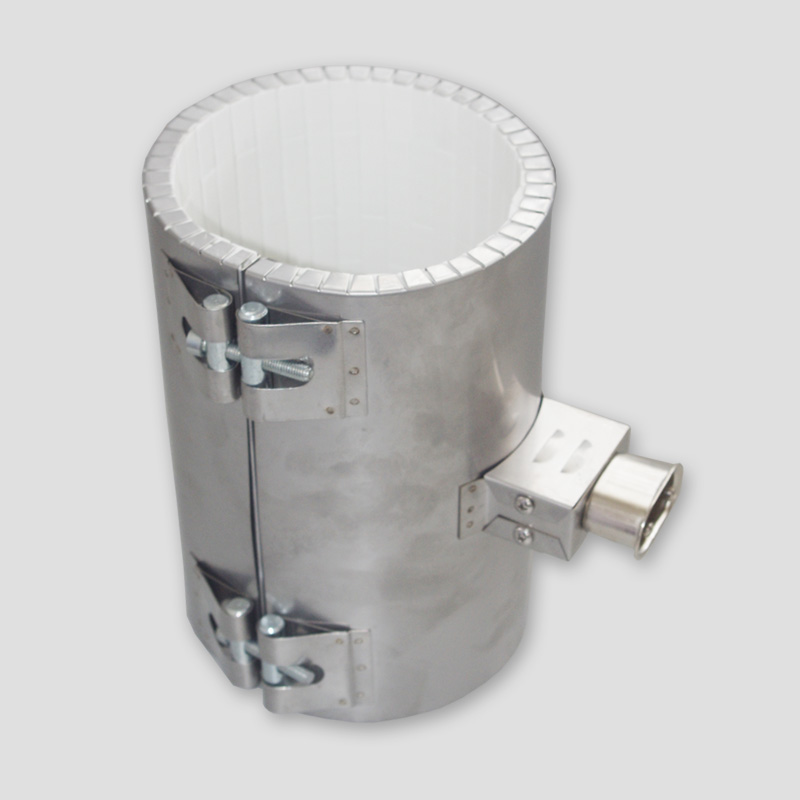

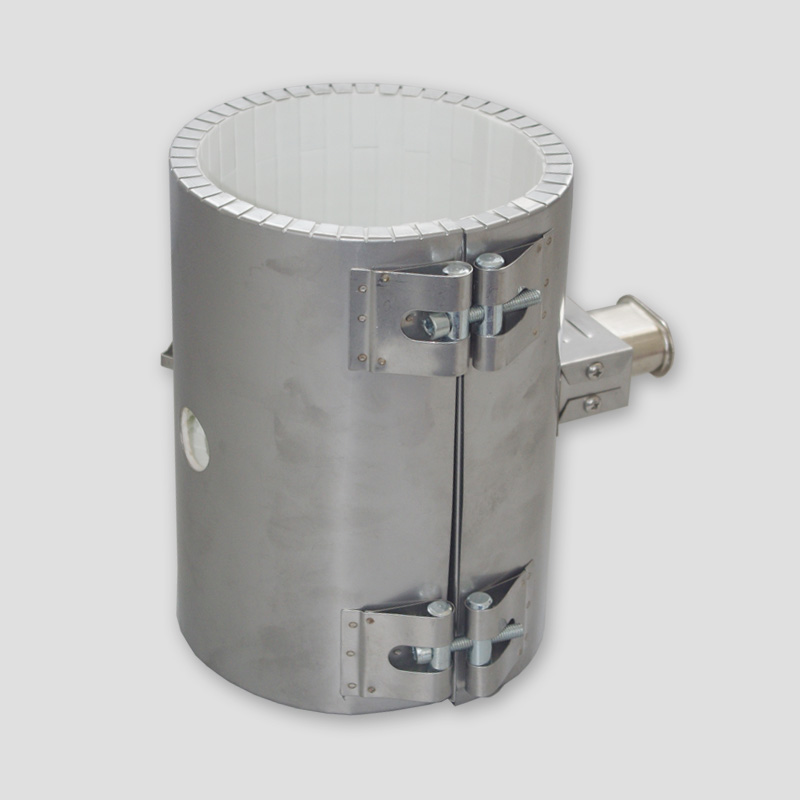

Ceramic Band Heater

Ceramic Band Heater is designed specially to meet your most demanding needs. Please inquire about our Heaters.

CE approved

Category:

Product Description

Ceramic Band Heaters consists of stainless steel housing surrounding stacked ceramic tiles. A helically wound resistance coil made from nickel-chrome wire is precisely strung through specially designed ceramic insulating tiles. Ceramic fiber blanket of insulation is used to reduce power consumption by 25-30%, in comparison to band heaters without insulation.

Ceramic Band Heaters transmit heat through both conduction & radiation. The element winding is designed to heat the ceramic blocks to the point at which they radiate energy into the barrel as well as conduct energy by being in contact with the barrel. Which are available in wide variety of configurations. Besides, our engineers will design a unique heater for your special application. And also we can customize control cabinets according to your wishes and demands.

► APPLICATIONS

  • Injection moulding
  • Blow moulding
  • Plastic extruders
  • Cylinders
  • Rubber machinery
  • Chemical equipment

► FEATURES

  • Available custom sizes, wattages upon request
  • SS304 housing
  • Resistance wire in Cr20Ni80
  • Ceramic fiber insulation included (Optional)

► TECHNICAL SPECIFICATION

  • Surface load up to 8W/cm²
  • Max working temperature up to 420℃
  • Power supply customized upon request

► BENEFITS

  • Easy to install
  • Easy to control
  • Easy to replace
  • Durable

► TERMINATIONS OPTIONS

► ORDER

Before you place an order, we need some data, inner diameter, width and location of thermocouple hole.


► AIR COOLED SYSTEM (OPTION)

If you want to add a rapid air cooled system for your band heater, you can contact us.

► INSULATION JACKETS (OPTION)

If you want to add insulation jackets for your band heater, you can contact us.
