Product Description

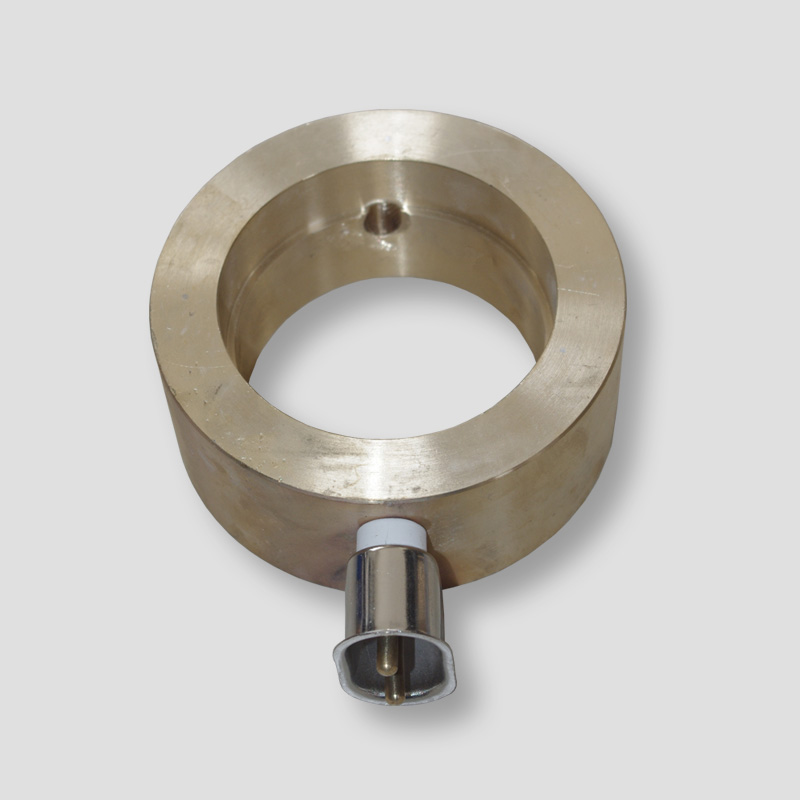

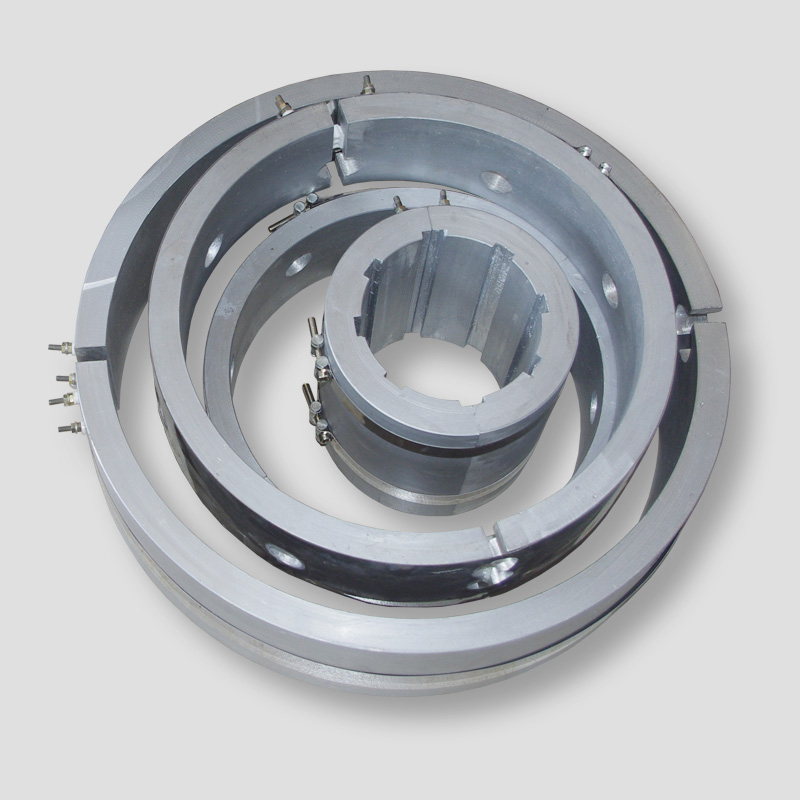

Cast-in Heaters consist tubular heating elements embedded in aluminum, bronze or brass, which have equal heat distribution and excellent thermal conductivity. Cast-in Heaters offer a high quality and efficient method of heating and controlling Extruders, Compression Molding Platens, Heat Sealers, Vacuum Forming Platens.

Cast In Heaters can be casted into any shape and size. Cast in heaters are common in plastics industries, food industries, pharmaceutical industries, semiconductor industries, metallurgy, petrochemical industries, packing industries, textile industries etc. Which are available in wide variety of configurations. Besides, our engineers will design a unique heater for your special application. And also we can customize control cabinets according to your wishes and demands.

► APPLICATIONS

• Rubber & Plastics extruders
• Heat Transfer Presses
• Foodservice Equipment
• Die
• Packaging Equipment

► FEATURES

• Available custom sizes, wattages upon request
• Cast in material aluminum, brass and bronze
• Resistance wire in Cr20Ni80
• Built-in sensor PT100, TC-J and TC-K (optional)

► TECHNICAL SPECIFICATION

• Surface load up to 20W/cm²
• Max working temperature up to 750℃
• Power supply customized upon request

► BENEFITS

• Easy to install
• Easy to control
• Easy to replace
• Durable
